KeBe v2
68 keys in straight columns, with August Dvorak's letter order.
Pre-order price, plus shipping.
Pre-order: plus shipping, calculated at checkout, and charged in full there. Currently shipping October 31, to Canada and the US.
Before you pre-order
Will I have to relearn typing?
Yes. Nothing sits where a standard keyboard puts it, so you learn KeBe as a new instrument instead of unpicking old habits one key at a time. Switching takes practice, and the first weeks are slower. The free typing trainer on this site teaches the layout one key at a time, so you can start before your board arrives.
Does it work with my computer?
It is a USB keyboard: plug it in by USB-C and it types, with nothing to install.
How do I pay?
By card, in full at checkout, through Stripe. The card number goes to Stripe, not to us. You check out as a guest, with no account needed.
Why the keys are where they are
Dvorak's letters, in straight columns
KeBe's keys sit in straight columns on an 18 by 17 mm grid, so each finger moves straight up and down its own.
The home row does the work
The row your fingers rest on reads A O E U I under the left hand and D H T N S under the right. Add up how often each letter turns up in English and about 71% of the letters you type land on that row. On QWERTY's A S D F G H J K L it is about 34%, so two letters in three are a reach.
Symbols in the middle
The - = [ ] / \ keys a standard board leaves to your right pinky sit in the two middle columns, where your pointer fingers take them: far stronger fingers than your pinkies.
Typos fixed in the keyboard
The firmware carries a dictionary of common misspellings and corrects a word the moment you finish it, by itself, on any computer you plug into: accomodate becomes accommodate before you look up. Fn + A switches the whole thing off.
Also: 68 keys, ortholinear, Matrix-Dvorak · 4 × USB-C: 1 to the computer, 3 as a USB 2.0 hub · Kailh Choc v1 Brown, low-profile tactile · Per-key RGB, 68 SK6812MINI-E LEDs. Full specifications

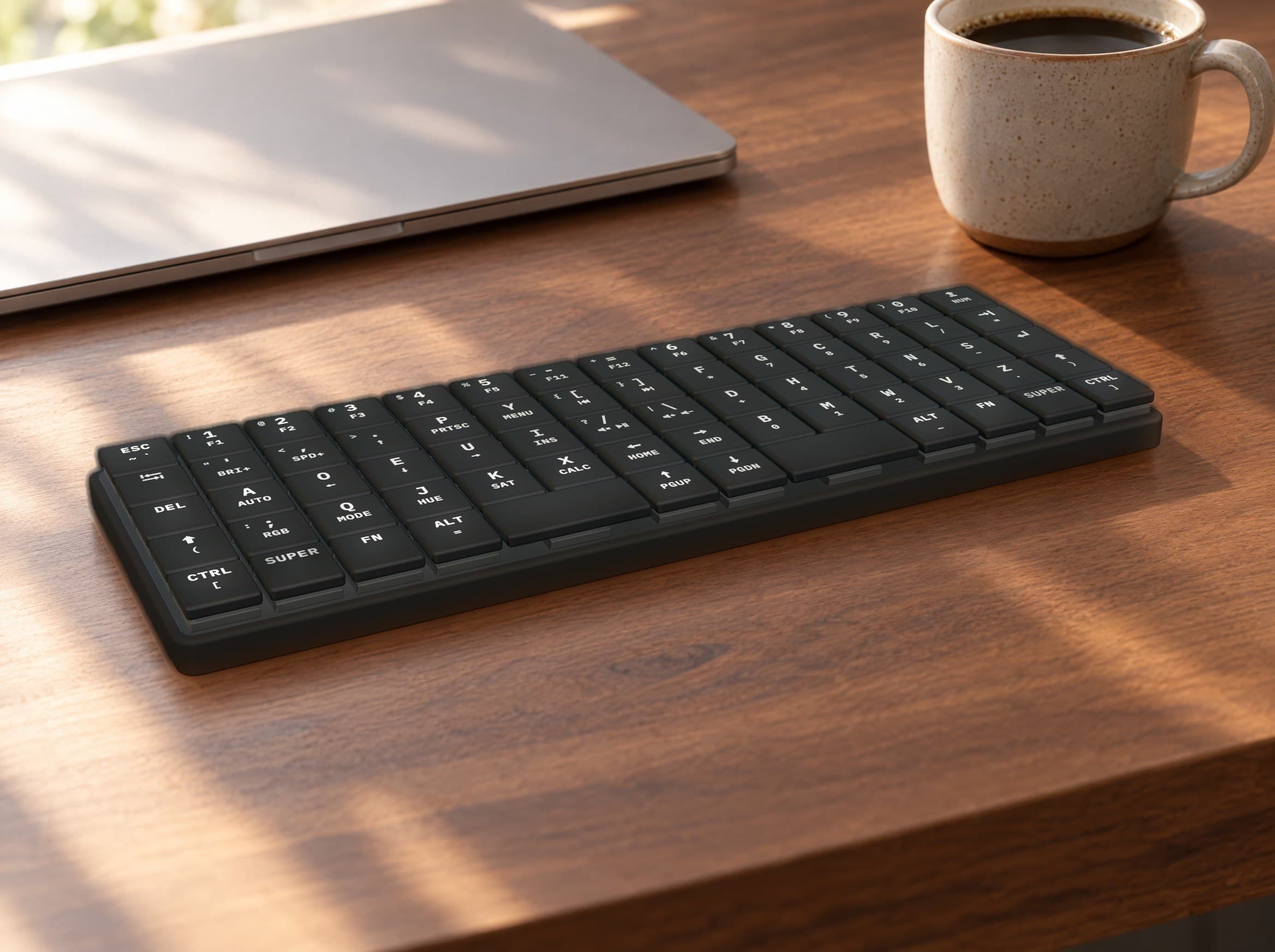

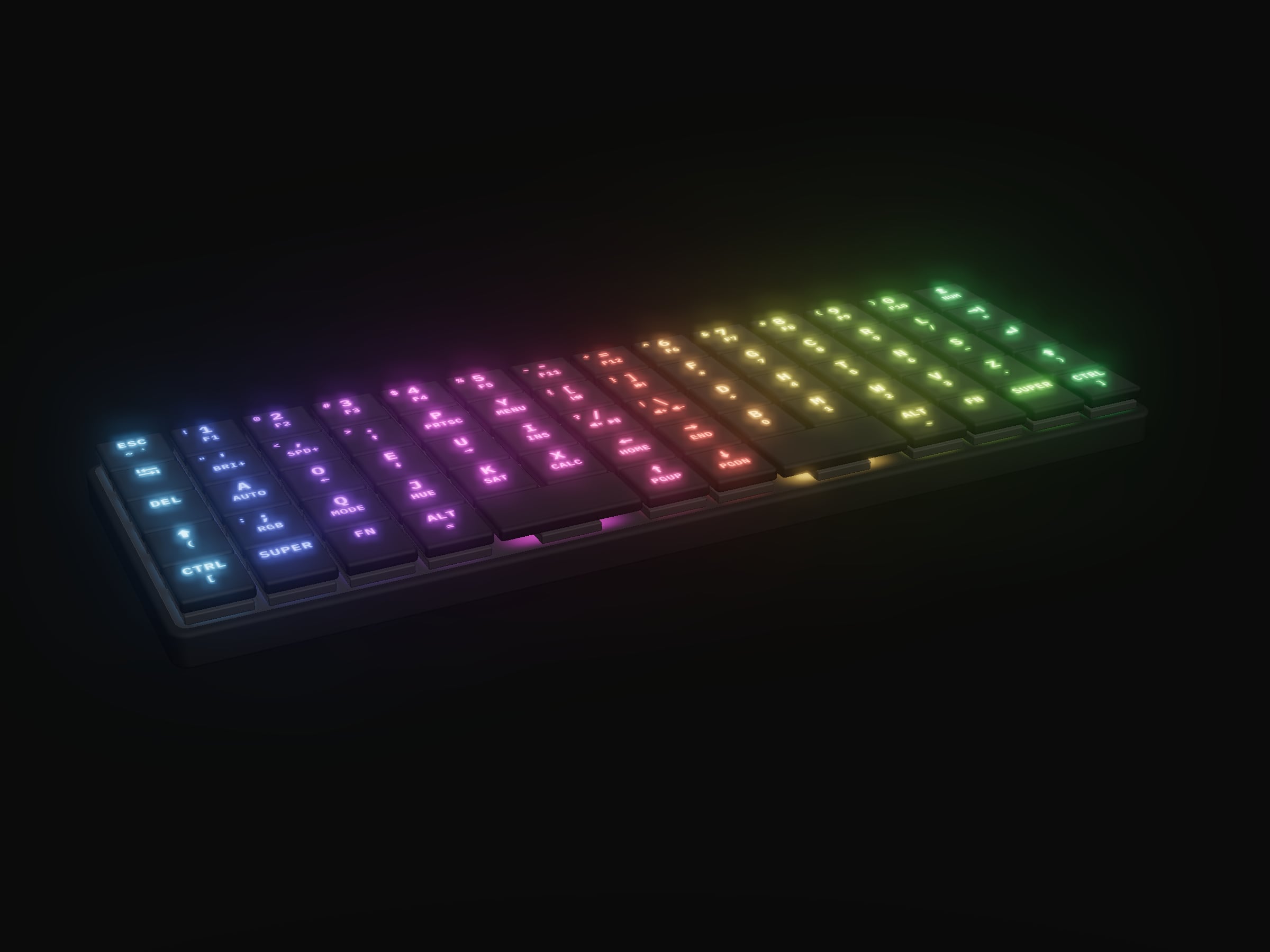

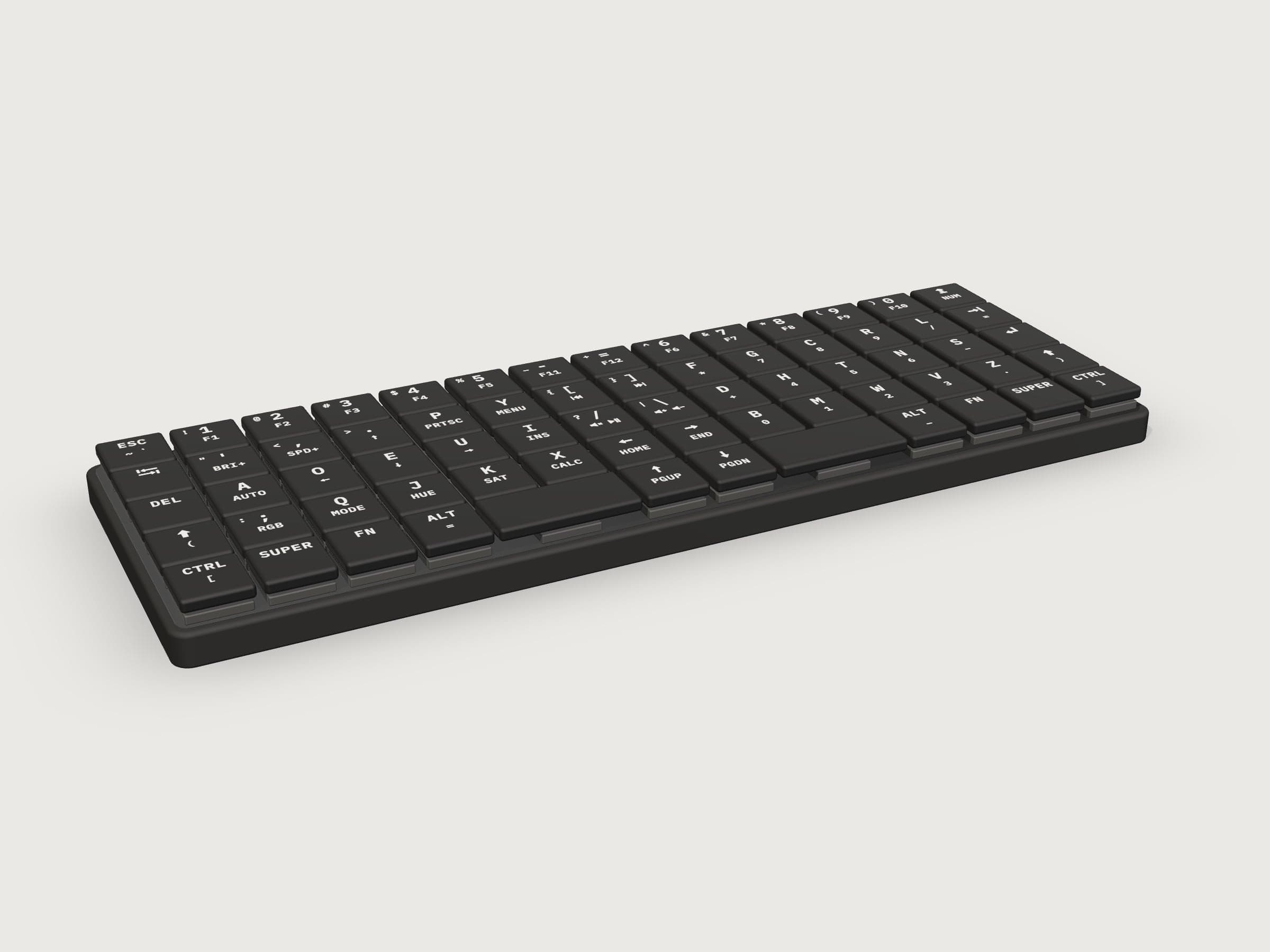

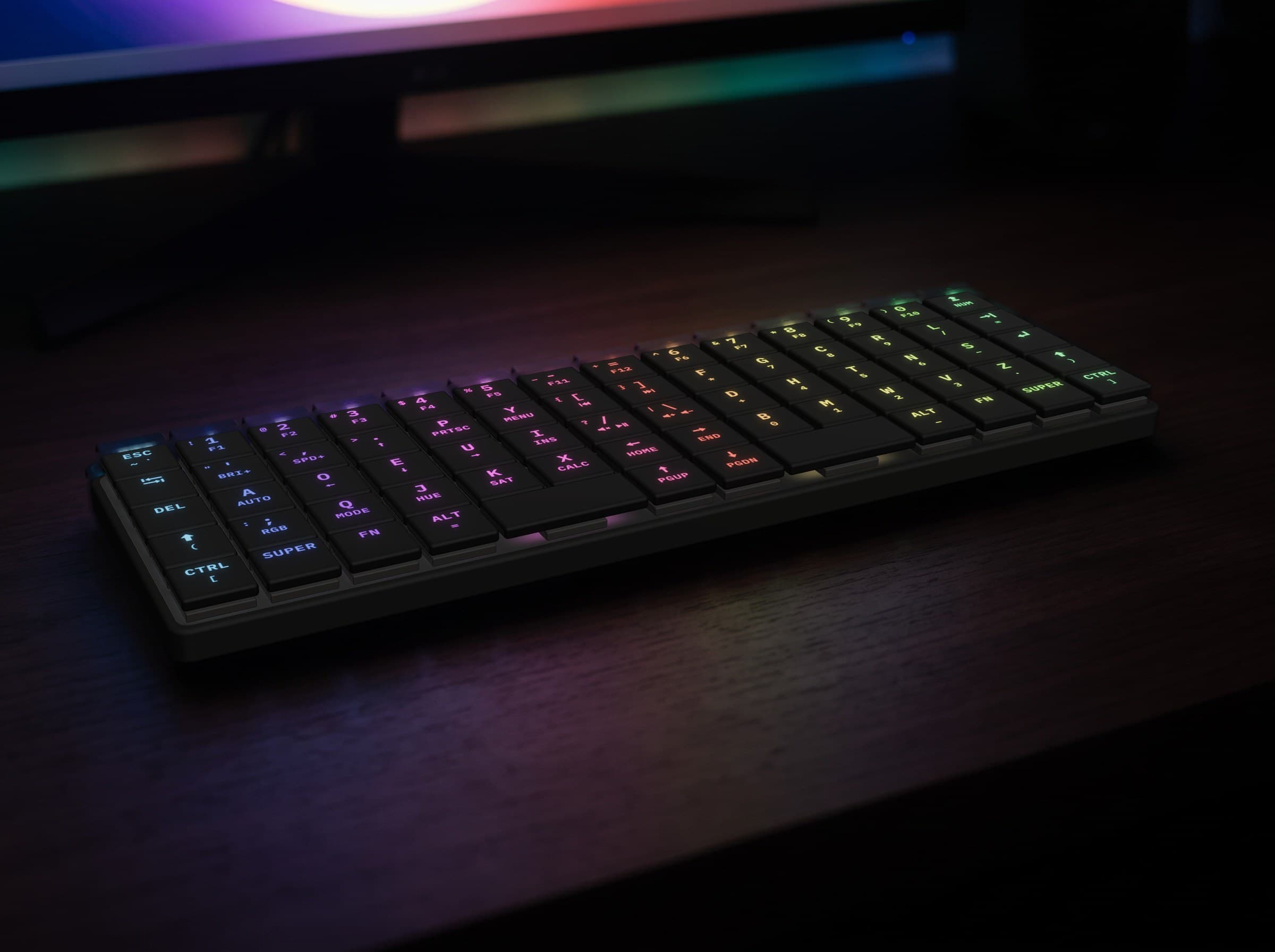

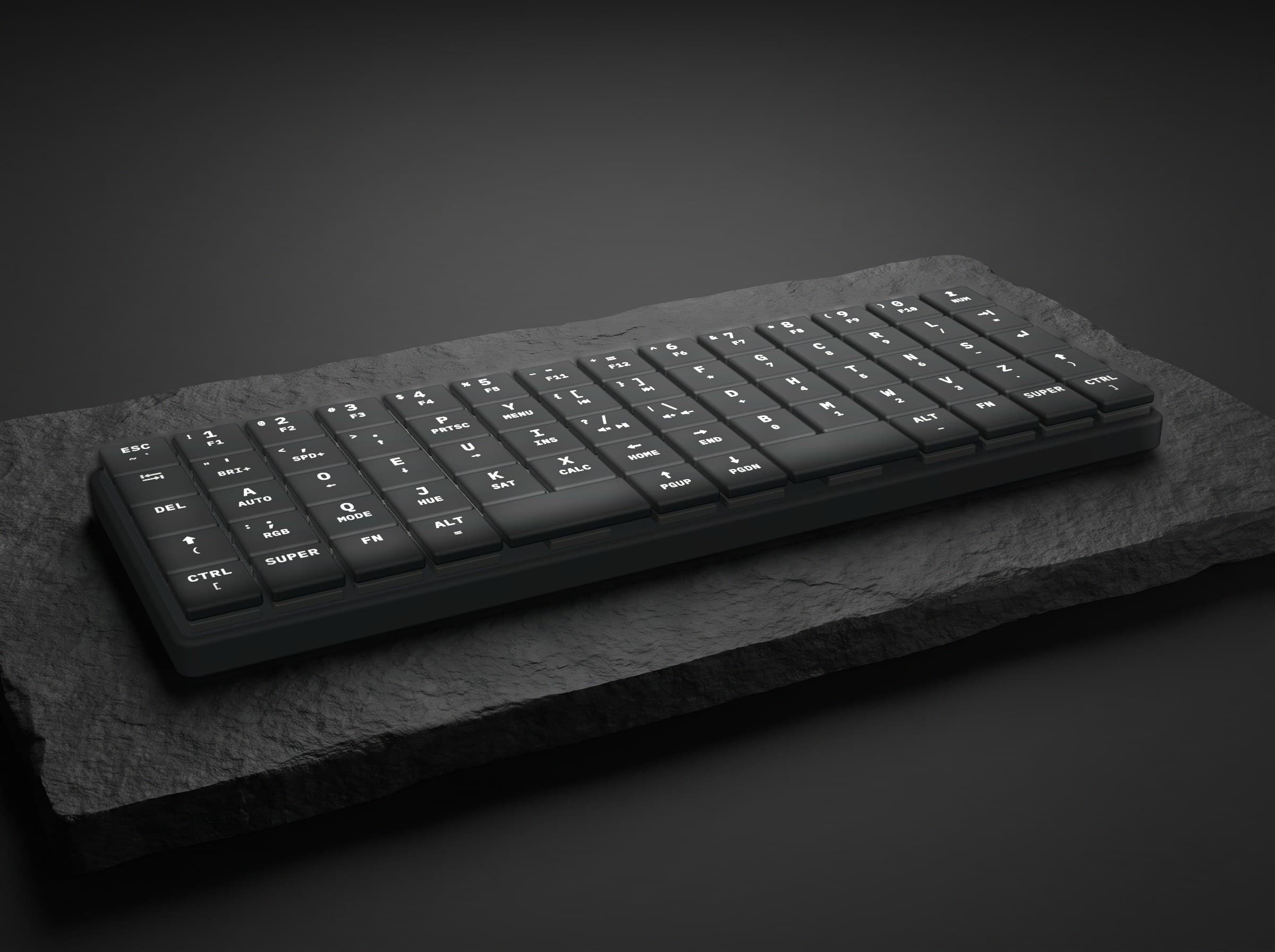

None of the v2 pictures here are photographs: the plain renders and the 3D model come straight from v2's CAD, and the desk, studio and night pictures and the clip set that CAD model in AI-generated scenes.






About the board

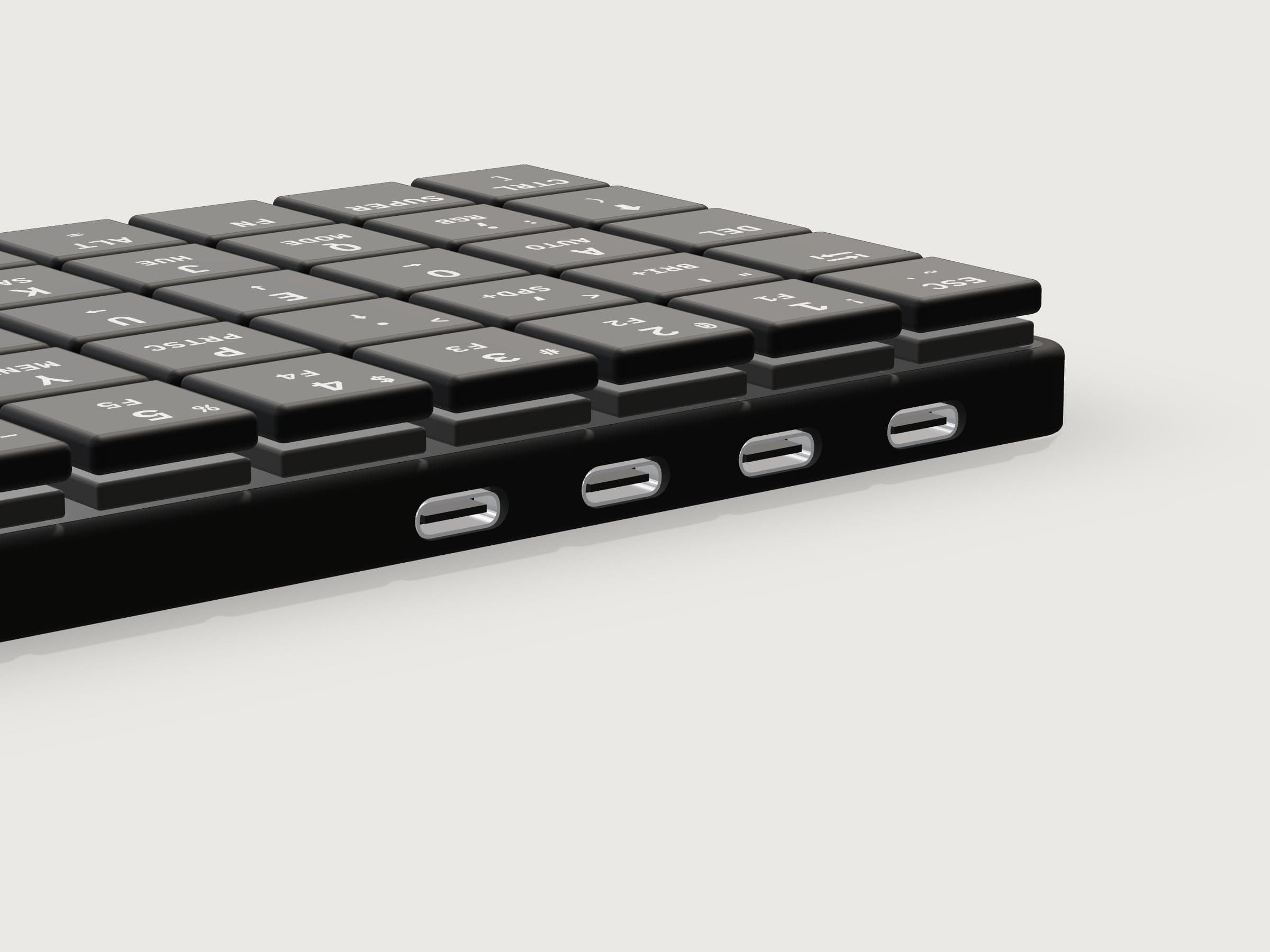

KeBe v2 is v1's 68-key Matrix-Dvorak keyboard with a USB hub built in. Four USB-C ports sit on the back edge: one goes to your computer, and the other three are a USB 2.0 hub for a mouse receiver, a flash drive or anything else that draws little power.
The case is one piece of black-dyed nylon, 8.65 mm tall against v1's 9.45, and it holds the board, switches and plate with snap-fit catches instead of screws. Kailh Choc low-profile switches sit in hot-swap sockets, sixty-eight SK6812MINI-E LEDs light the keys one by one, and the STM32F072 runs QMK, so a v1 keymap carries straight over.
It is all black. The plate is FR4 with black soldermask, and the keycaps are black with shine-through legends, so each key's LED lights its legend. Where a key has an Fn-layer legend, it sits below the main one.
Each board is assembled by hand in Canada. None of the pictures or the clip are photographs: the plain renders and the 3D model come straight from v2's CAD, and the desk, studio and night pictures and the clip set that CAD model in AI-generated scenes.
Specifications
- Layout
- 68 keys, ortholinear, Matrix-Dvorak
- Switches
- Kailh Choc v1 Brown, low-profile tactile
- Sockets
- Hot-swap: change switches without solder
- Keycaps
- Black, with shine-through legends
- Lighting
- Per-key RGB, 68 SK6812MINI-E LEDs
- Ports
- 4 × USB-C: 1 to the computer, 3 as a USB 2.0 hub
- Controller
- STM32F072, running QMK
- Case
- Black-dyed nylon, screwless snap-fit
- Plate
- FR4, black soldermask
- Case size
- 256.7 × 89.2 × 8.65 mm
- Assembly
- By hand in Canada
Shipping
A pre-order, charged in full at checkout and shipped to Canada and the United States. Currently shipping October 31.
Shipping goes by Canada Post. You choose the service at checkout, and it is added to the price.
US orders go by Canada Post with the US duties already paid, so there is nothing more to pay on delivery.
